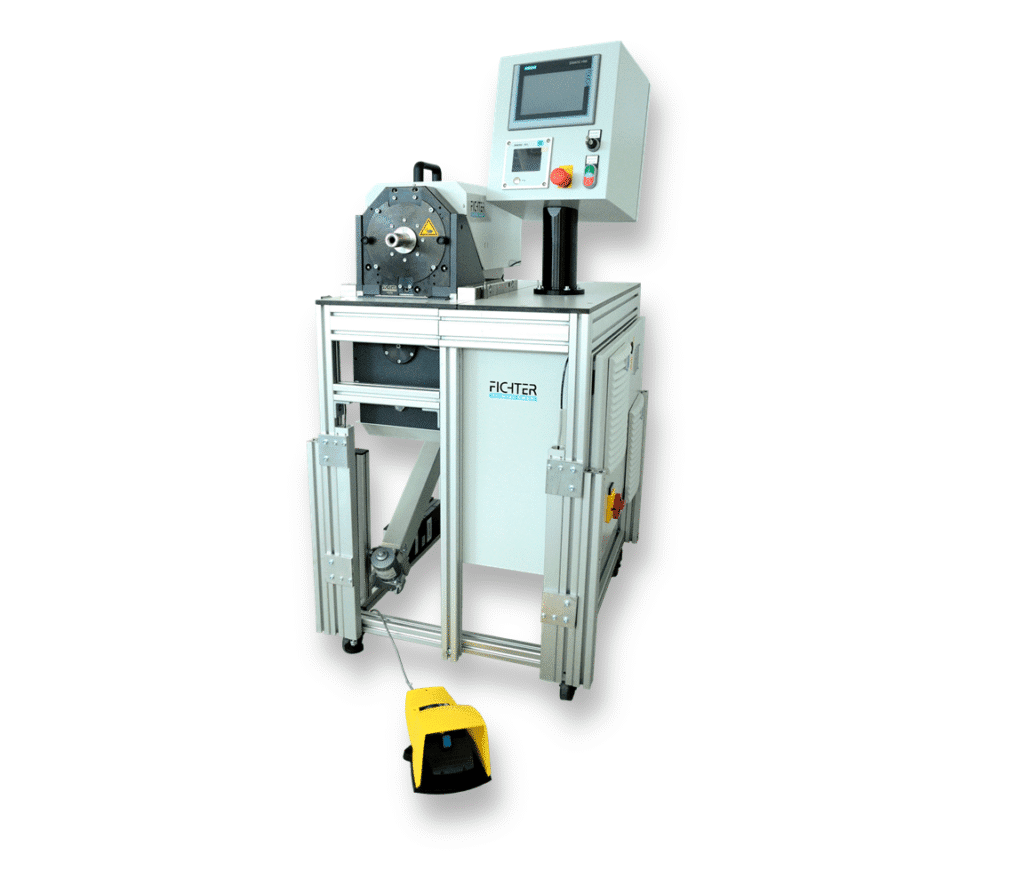

Segment Former SF25-Compact
The SF25-Compact crimping machine – SegmentFormer – is particularly suitable for:

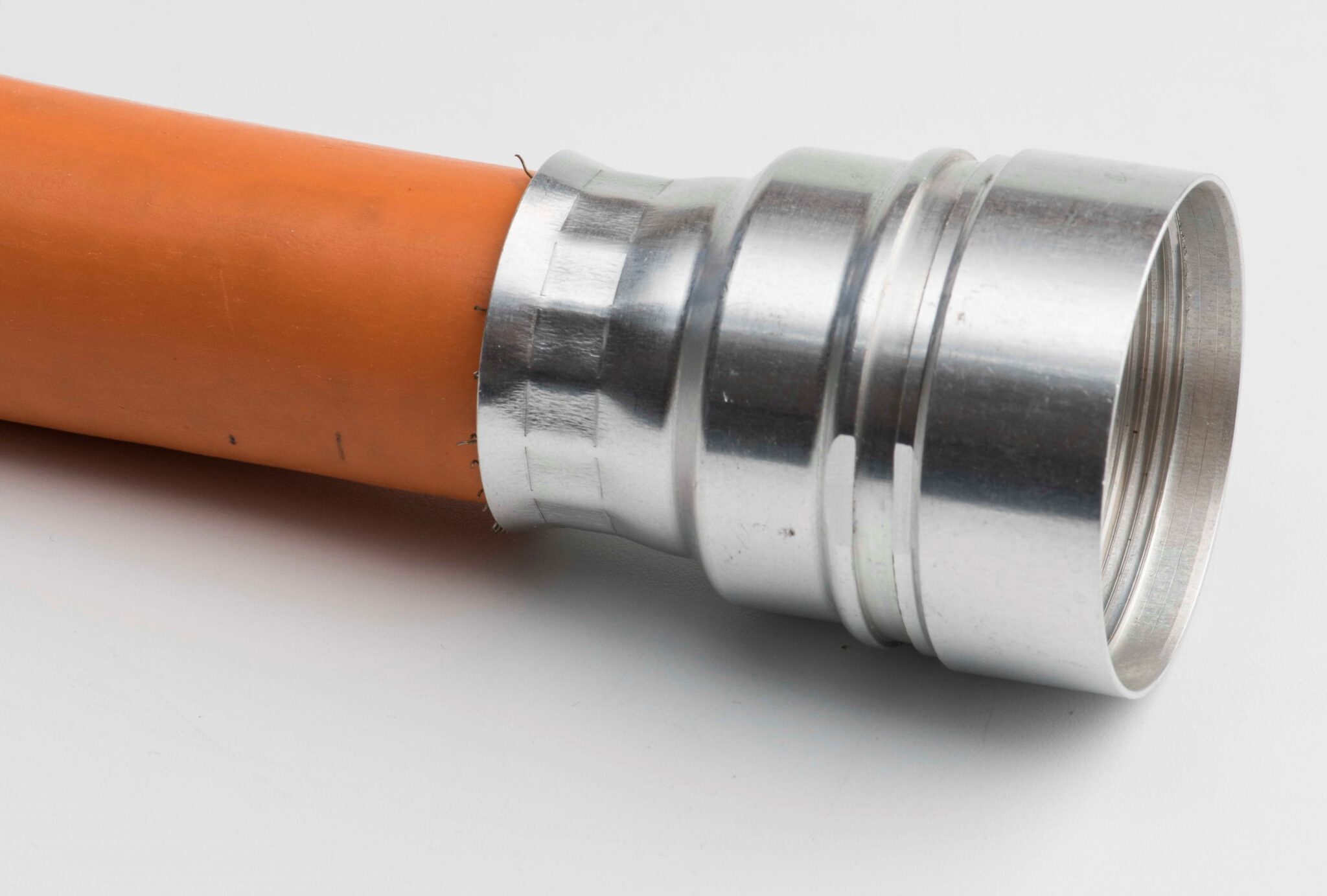

- Sleeves with cables or hoses
- Housings with connectors
- Hoses and pipes
- Sensors with cable
Space-saving model with a compact design - perfect for small workshops or mobile use.
With the motorized press, you can achieve a form-fitting connection, including improved strain relief, anti-rotation protection, or shielding.
A typical application, for example, is to mechanically secure connecting cables in sensor sleeves against being pulled out and to seal them at the same time. In addition, this process can be used to flange connectors into sensor housings and much more. Wall thicknesses from 0.2 mm up to approx. 1.0 mm with a diameter of 3 to 25 mm are possible.
The SF25 compact was specially developed for components that are to be inserted vertically from above or below between the crimping jaws into the machine. It is mainly used in areas with little space and in semi- or fully automated systems, e.g. rotary table feed with lifting station, robot loading and pick & place systems.
Details
Machine structure
The machine is very easy to operate. The workpiece to be formed is inserted into the machining opening, usually positioned by means of a stop, it stands still while the forming jaws move axially onto the workpiece. The corresponding parameters for machining can be stored and managed in the machine’s own control system by means of simple and logical operation. All functionally important processes are electronically monitored and the data is recorded in the control system.
However, the same can also be taken over by a higher-level system control.
This ensures a high level of process reliability and reproducibility.
- Basic module with mounting holes for accommodating all functional components, consisting of: Basic console with holder for servo motor, gearbox and encoder
- Set-up kit available in two versions:
- Version 1: Narrow version for wall thicknesses up to 1.0 mm
- Version 2: Reinforced version for wall thicknesses from 1.0 to approx. 2.0 mm
- Forming jaws (forming tool), flat or round presses, number 6/8/12/16 possible
- Covering of the drive mechanism
- Form head secured at the rear against intervention with protective tube
- Form head secured at the front with cover. Simple part insertion for quick assembly remains guaranteed.
- Front protection also available with light grid
- Emergency stop stops all movements immediately
- VIPA Speed7 PLC with operator panel Siemens TP700 comfort; S7 and TIA-Portal V13
- Data records can be selected via the operator panel (optionally via barcode scanner)
- Database for product-specific parameters
- Three access levels for machine control (operator, service and administrator)
- Language freely selectable, standard in German and English, other languages at an additional cost
- Control cabinet mounted in the frame
- Acceptance of all machine components
- Steel frame welded and coated with 4 rotating rollers, 2 with locking brake
- Optional made of aluminum system profile
- Documentation, hazard analysis, CE mark
Optional components / attachments
The standard SegmentFormer SF25Compact can be equipped with various optional attachments and functions. This makes it possible, for example, to expand the machine into a semi-automatic press with process monitoring.
- Position stop is moved manually to the position
- one position possible for each data record
- Position queried via encoder and displayed on OP
- Component position is sensorially detected at the position stop
- Machine is started automatically or with a foot switch
- Freely programmable sentence sequence (max. 30 commands per data record)
- several pressing positions programmable in one data record
- Stop is moved motorically to the stop position by selecting the data record
- Position is displayed on OP
- Component position is sensorially detected at the position stop
- Machine is started automatically or with a foot switch
- Force transducer integrated in the toggle lever determines forces occurring in the lever
- Graphical output of the forces on a separate measuring device
- OK and not OK evaluation
- Table top mounted on height-adjustable columns
- Height adjustability up to 300mm
- 4 rotating castors, 2 with locking brake
- Securing free access to the assembly of the SegmentFormer.
- With obstacle detection
- Initial acceptance carried out
- Adaptation of the machine according to customer requirements.
- Integration of the machine as a sub-station in complete systems possible
- Further alternatives are conceivable
Technical data
- Dimensions
- Tool data
- Voltage supply
- Power
- Electricity
- Pre-fuse
- Line cross-section
- Compressed air
- Weight
- Repeatability
- Cycle time
