Segment Former SF25
Perfect positive connections for your most demanding components – with guaranteed process reliability.
- Crimping / pressing sleeves with cables or hoses
- Crimping / pressing housings with connectors
- Crimping / pressing hoses and pipes
- Crimping / pressing sensors with cables
Software & Hardware
Maximum pressing force
Precision
Minimal
Maintenance
Intuitive
Operation
Areas of Application

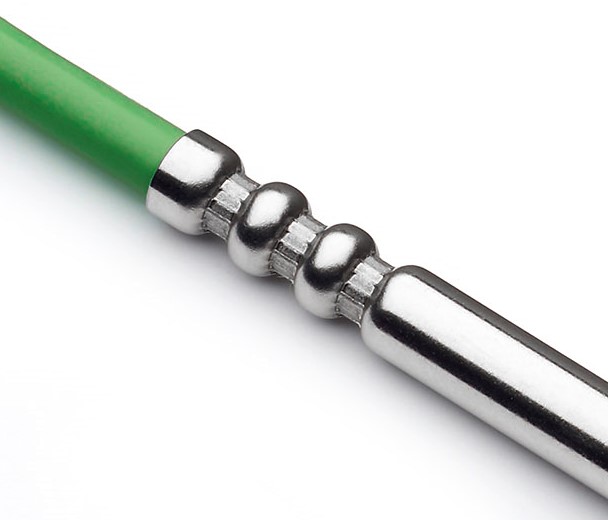

Secure and tight sensor connections: Securing and sealing connection lines and cables in sensor sleeves, often with IP67 standard.
Robust pressing of connectors: Positive and non-positive pressing of plugs and contacts into housings for secure connections.
Tightness in hydraulic/fluid-carrying components: Precise and tight connections on hoses and pipes in fittings or housings for reliable fluid guidance.
Integration of cables and components in motor housings: Secure and sealed integration of cables and components in motor or drive housings.
Production of complex cable assemblies and electronic assemblies: Precise fixation and protection of electrical lines or components in complex assemblies.
Quality in detail: The Segment Former SF25
Experience made visible – across all industries
From the initial design to the final implementation, we stand by our customers as a reliable partner – across all industries and solution-oriented.
Machine structure
The operation of the SF25 automatic press is very simple. The workpiece to be formed is inserted into the machining opening and usually positioned by means of a stop; it stands still while the forming jaws move axially onto the workpiece. The corresponding parameters for machining can be stored and managed in the machine control. The user interface allows simple, logical operation. All functionally important processes are electronically monitored and the data is recorded in the control system. This ensures a high level of process reliability and reproducibility.
- Basic module with mounting holes for accommodating all functional components, consisting of: Basic console with holder for servo motor, gearbox and encoder
- Set-up kit available in two versions:
- Version 1: Narrow version for wall thicknesses up to 1.0 mm
- Version 2: Reinforced version for wall thicknesses from 1.0 to approx. 2.0 mm
- Forming jaws (forming tool), flat or round presses, number 6/8/12/16 possible
- Covering of the drive mechanism
- Forming head secured on both sides by cover or protective tube
- Also available with light grid, only insertion area or complete
- Emergency stop stops all movements immediately
- VIPA Speed7 PLC with operator panel Siemens TP700 comfort; S7 and TIA-Portal V13
- Data records can be selected via the operator panel (optionally via barcode scanner)
- Database for product-specific parameters
- Three access levels for machine control (operator, service and administrator)
- Language freely selectable, standard in German and English, other languages at an additional cost
- Switch cabinet mounted in the frame
- Acceptance of all machine components
- Steel frame welded and coated with 4 rotating rollers, 2 with locking brake
- Optional made of aluminum system profile
- Documentation, hazard analysis, CE mark
Optional components / attachments
The standard SegmentFormer SF25 can be equipped with various optional attachments and functions. This makes it possible, for example, to expand the machine into a semi-automatic press with process monitoring.
- Position stop is moved manually to the position
- one position possible for each data record
- Position queried via encoder and displayed on OP
- Component position is sensorially detected at the position stop
- Machine is started automatically or with a foot switch
- Freely programmable sentence sequence (max. 30 commands per data record)
- several pressing positions programmable in one data record
- Stop is moved motorically to the stop position by selecting the data record
- Position is displayed on OP
- Component position is sensorially detected at the position stop
- Machine is started automatically or with a foot switch
- Force transducer integrated in the toggle lever determines forces occurring in the lever
- Graphical output of the forces on a separate measuring device
- OK and not OK evaluation
- Table top mounted on height-adjustable columns
- Height adjustability up to 300mm
- 4 rotating castors, 2 with locking brake
- Securing free access to the assembly of the SegmentFormer.
- With obstacle detection
- Initial acceptance carried out
- Adaptation of the machine according to customer requirements.
- Integration of the machine as a sub-station in complete systems possible
- Further alternatives are conceivable
Compact standard solution for precise forming of small workpieces. Ideal for individual parts small series.
The Segment Former SF25 is an advanced motorized press for rotationally symmetrical components (Ø 3-25 mm, wall thickness 0.2-1.0 mm). It achieves positive connections for strain relief, anti-rotation and shielding. Typical applications include the secure sealing and flanging of connection lines or connectors in housings.
Technical data – Segment Former SF25
- Dimensions
- Tool data
- Voltage supply
- Power
- Electricity
- Pre-fuse
- Line cross-section
- Compressed air
- Weight
- Repeatability
- Cycle time
Your partner for precision
At Fichter formtec in Eichstetten, we develop the technological basis for your success. With extensive experience, we offer you tailor-made solutions that advance your projects.
Your added value through our expertise
Special machine construction: Individual machines for absolutely form-fitting pressing, crimping and rolling – precisely tailored to your processes.
Precision forming: Highly complex shapes and components for demanding industries such as sensor technology, cable assembly and automotive.
Quality “Made in Germany”: Durable, reliable solutions that guarantee efficiency and the highest standards.
Contact
Contact us.
Do you have any questions about our services or would you like to discuss a specific project? We look forward to hearing from you and are happy to be there for you personally.
Quick direct – our contact form
Simply use the form to describe your request.
We will get back to you as soon as possible
FAQ – Questions Answers
What type of connections can the Segment Former SF25 make?
The Segment Former SF25 specializes in the production of positive connections. These include pressing for better strain relief, anti-rotation or shielding of components.
For which diameters and wall thicknesses is the SF25 suitable?
The Segment Former SF25 can process rotationally symmetrical components with a diameter of 3 to 25 mm. The possible wall thicknesses are between 0.2 mm and approx. 1.0 mm, whereby a reinforced version can also process up to 2.0 mm, depending on the material.
What are the typical applications for the SF25?
A typical application is the mechanical securing and sealing of connection lines in sensor sleeves against being pulled out. It is also possible to flange connectors into sensor housings or to press pipes, pipe ends, sleeves and fittings.
Does the Segment Former SF25 require compressed air for operation?
No, the Segment Former SF25 does not require compressed air for its operation.
What is the repeatability of the SF25?
The Segment Former SF25 is characterized by a high repeatability of ±0.05 mm, which guarantees a consistently high quality of the connections.
Is the SF25 also suitable for use in small workshops or mobile applications?
Yes, the Segment Former SF25 is also available in a “Compact” version, which is designed to save space and is ideal for small workshops or mobile applications.
What safety features does the SF25 offer?
The SF25 has covered drive mechanics, forming heads secured by covers or protective tubes and is optionally available with light grids. An emergency stop button is also available.
